I recently got hold of my first #SEGA Mega-CD 2, and I refurbished and modded it. Want to see what I did? Check below! 👇 - ThreadSky

I take it there’s no cd protection on the games? Cdrs do a decent job?

And yeah, I just used a generic USB CD/DVD burner with Maxell bank discs writing at 8x (which is the slowest the burner can handle), and no problem

reply

topvint.co.uk•78 days ago

No protection but it is region locked. I have ordered a Japanese BIOS which should be able to play any game.

reply

noromamai.bsky.social•78 days ago

Nice thread, thanks for sharing. Much to learn and glean from.

reply

topvint.co.uk•78 days ago

I did learn a lot indeed. I'm gonna try to write more details up for future reference because I'm at that age that I start forgetting stuff 😂😓

reply

noromamai.bsky.social•78 days ago

What did you use to paint the metal? Just some varnish?

reply

topvint.co.uk•78 days ago

The shields are chrome paint for metal, and I made sure the ground contacts are sanded. I have also used galvanised zinc spray in the past which is conductive. The lid spring is just outdoors metal spray paint in light gray

reply

noromamai.bsky.social•78 days ago

Ah ha! That's why they are so shiny! I thought you had some secret trick :)

reply

topvint.co.uk•78 days ago

😂 I could use clear coat, or plating if I knew how to do that. But no, just sand and spray paint I'm afraid

reply

topvint.co.uk•79 days ago

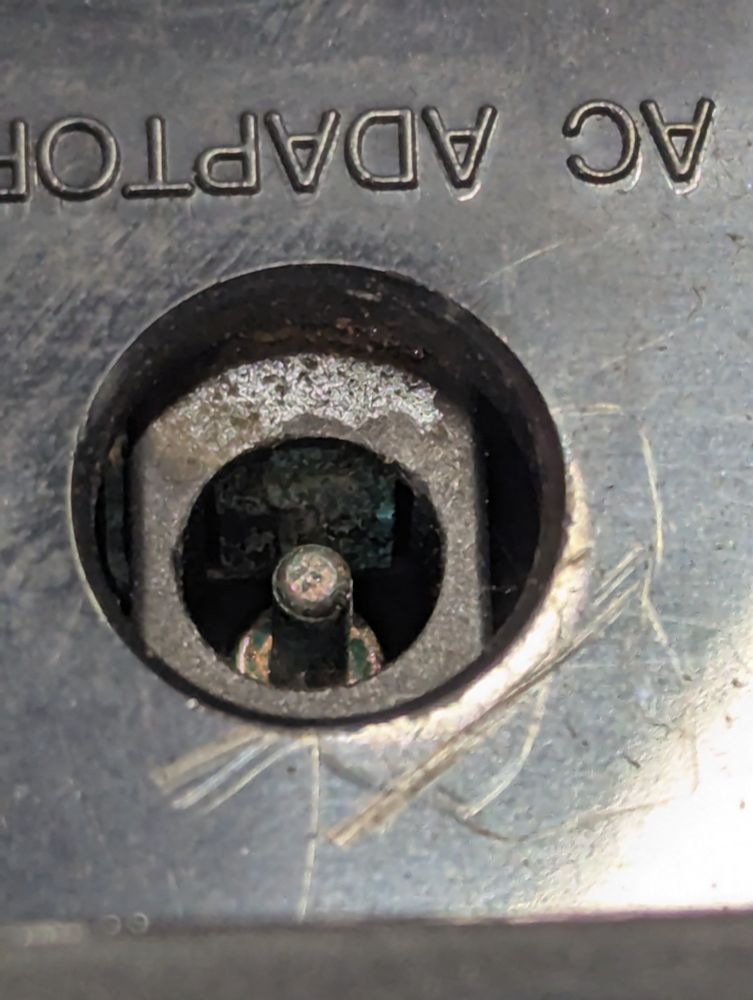

The console came in quite a sorry state, with plenty of rust visible from the outside. Once inside, it got much worse...

reply

topvint.co.uk•79 days ago

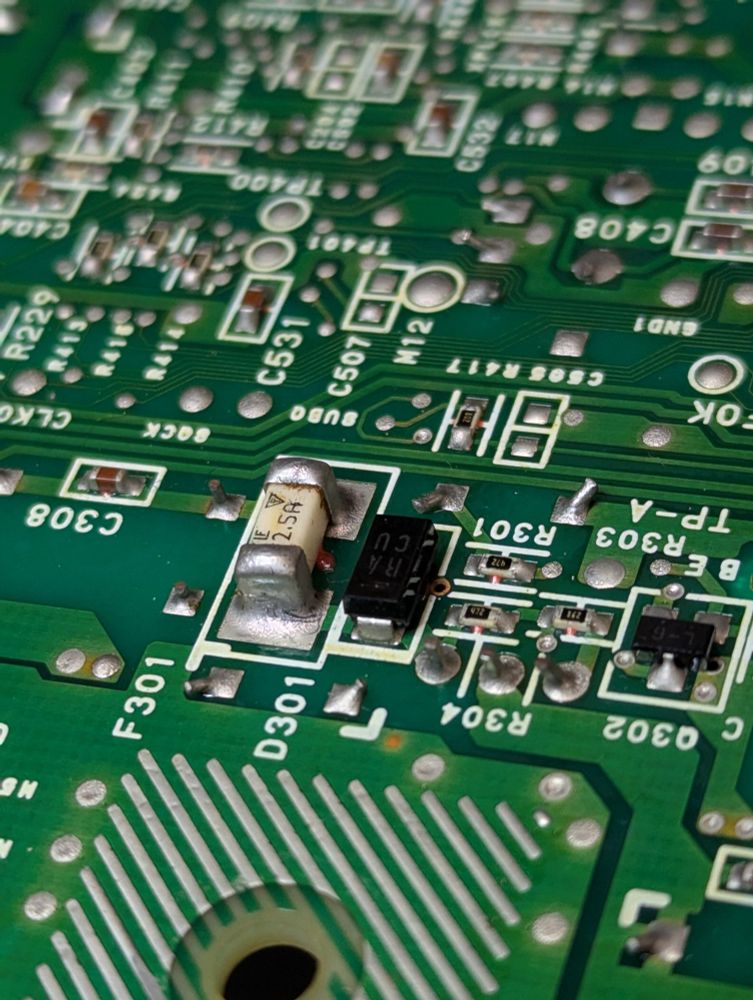

First thing was to check the fuse, and guess what, it was blown. So I replaced it, and after that, the console did turn on.

reply

topvint.co.uk•79 days ago

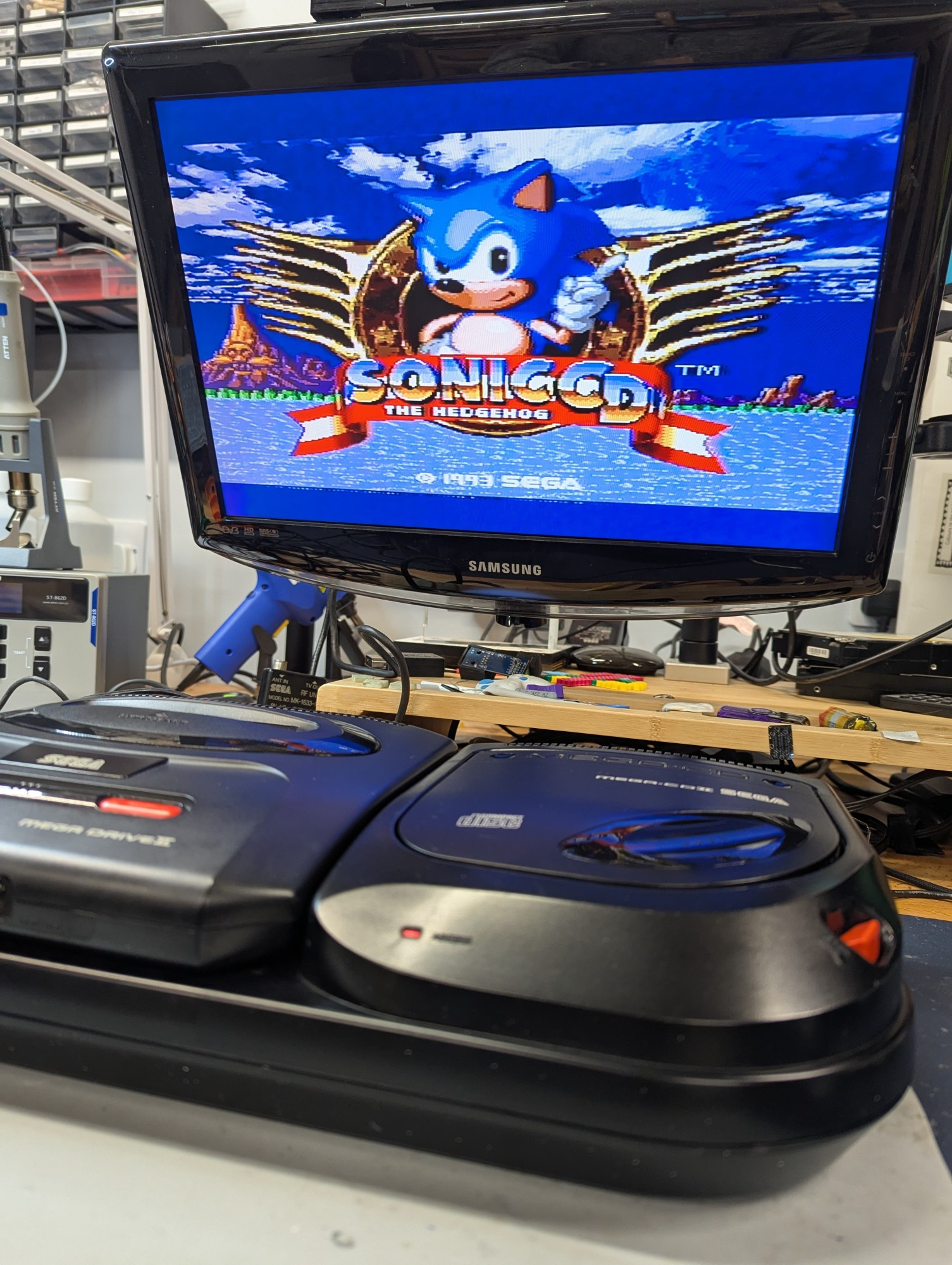

I burnt a CD and tested it with a Mega Drive 2. The CD was making a terrible noise. I later learnt that this was caused by a switch that detects when the laser reaches the end of the disc not working properly. Just a case of cleaning and putting some Deoxit on it.

reply

topvint.co.uk•79 days ago

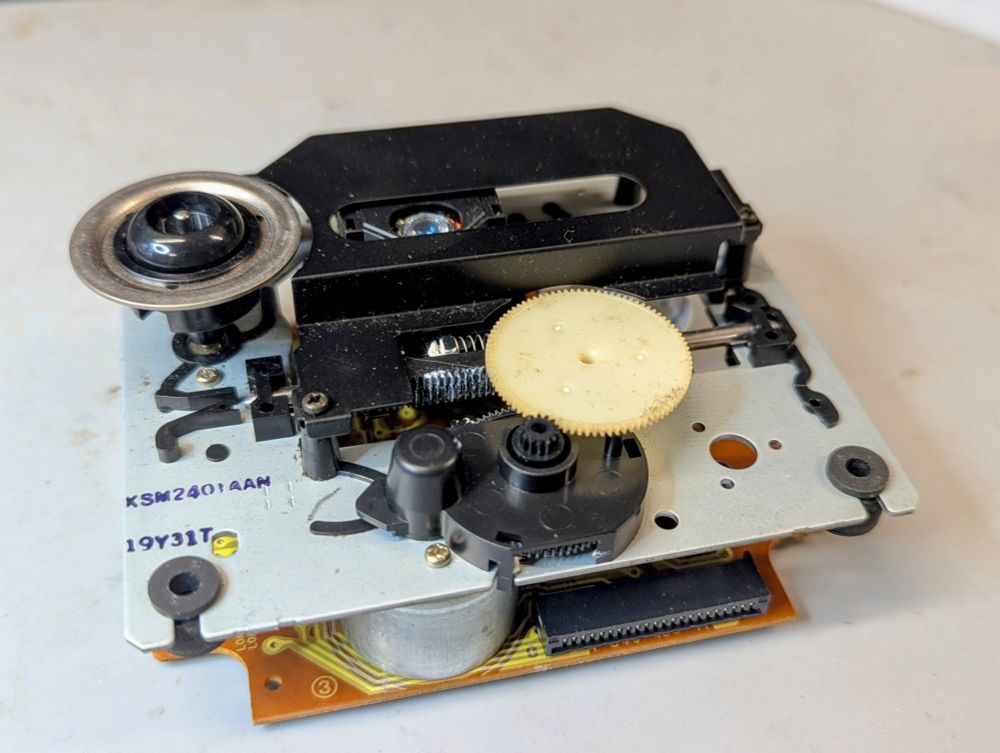

I also disassembled the various cogs, cleaned up the old grease and applied new one.

reply

topvint.co.uk•79 days ago

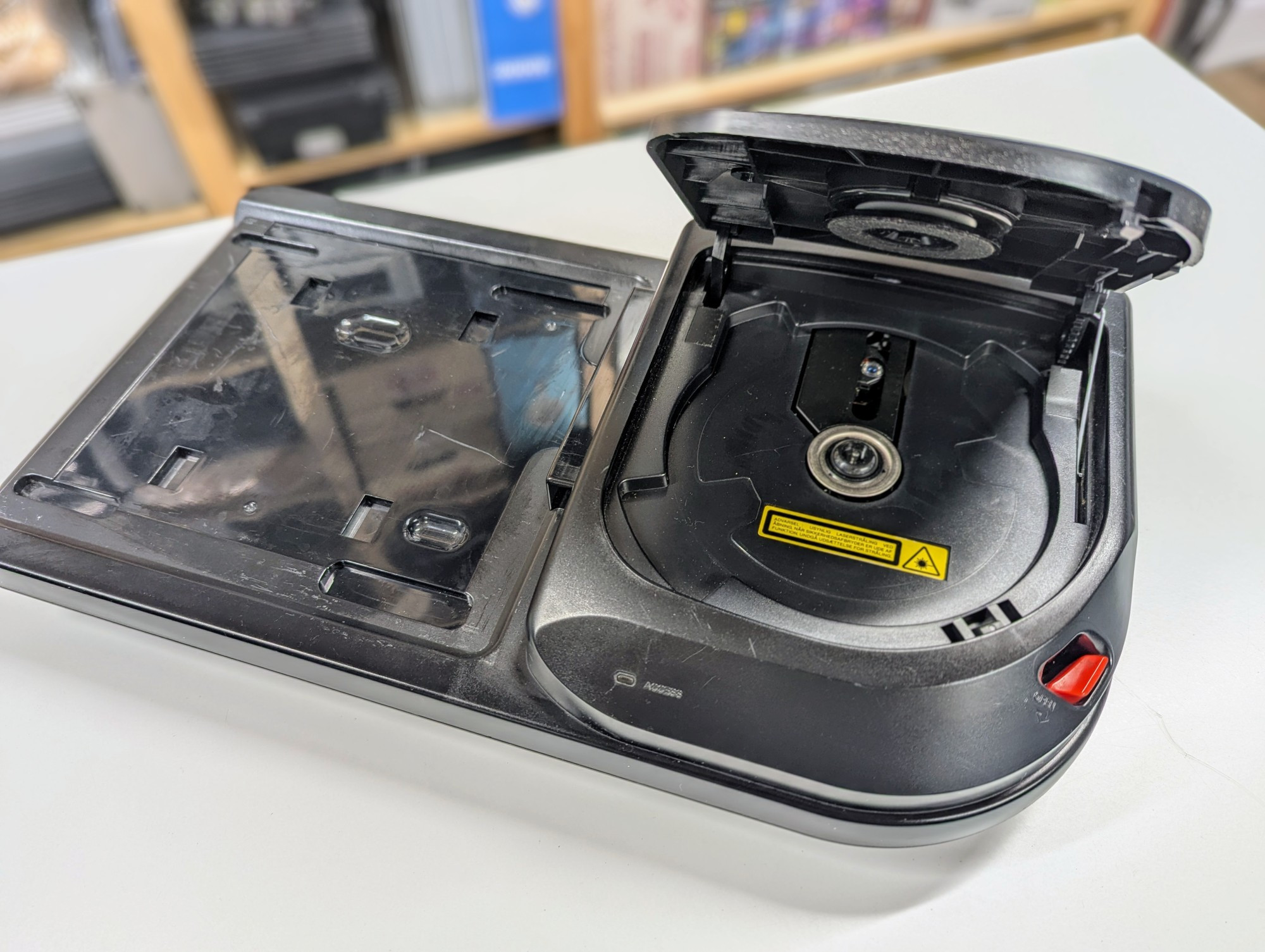

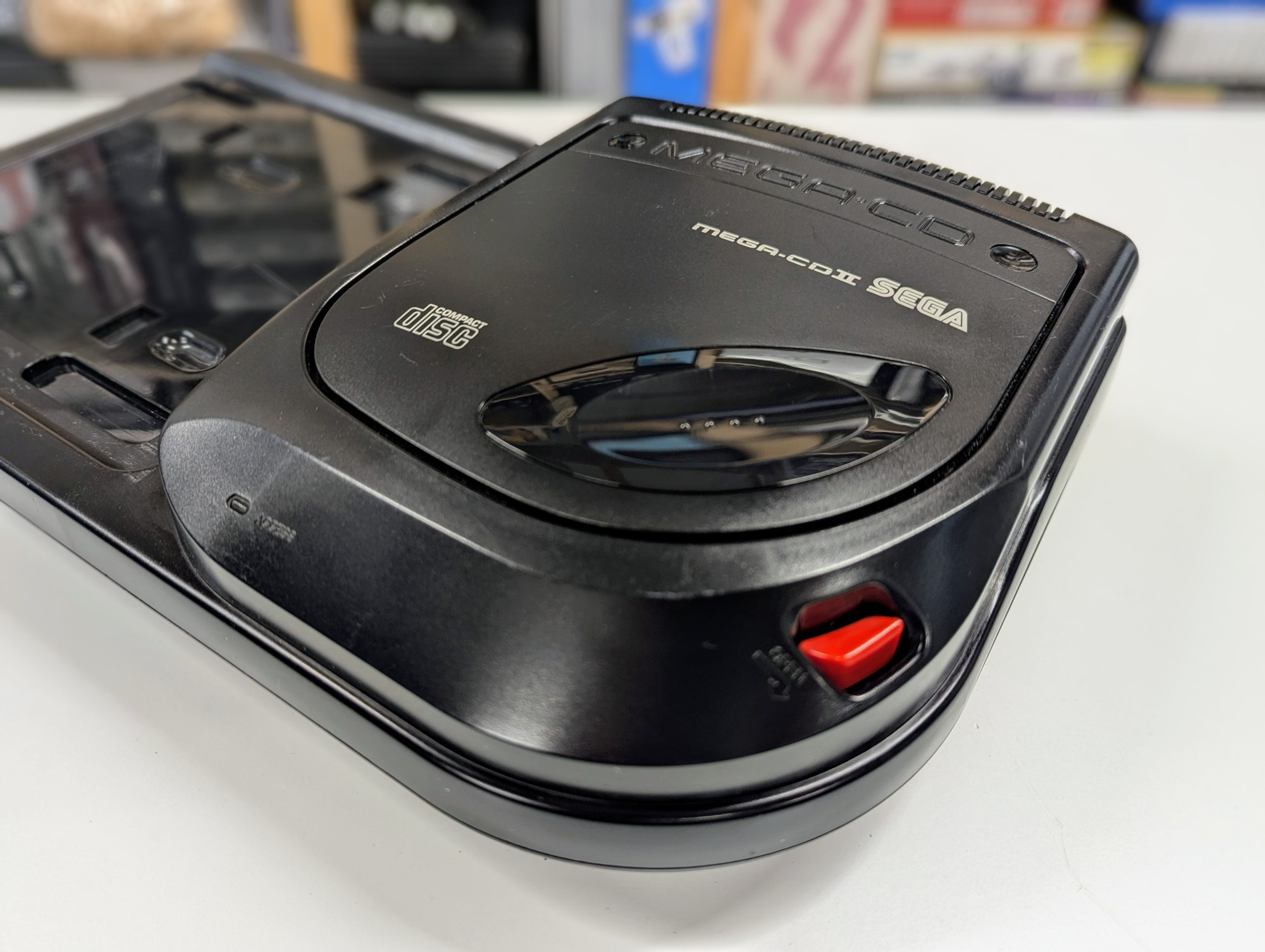

Once operation was confirmed, I proceeded to clean up the whole console. That meant full disassemble of the CD cover mechanism and a good wash

reply

topvint.co.uk•79 days ago

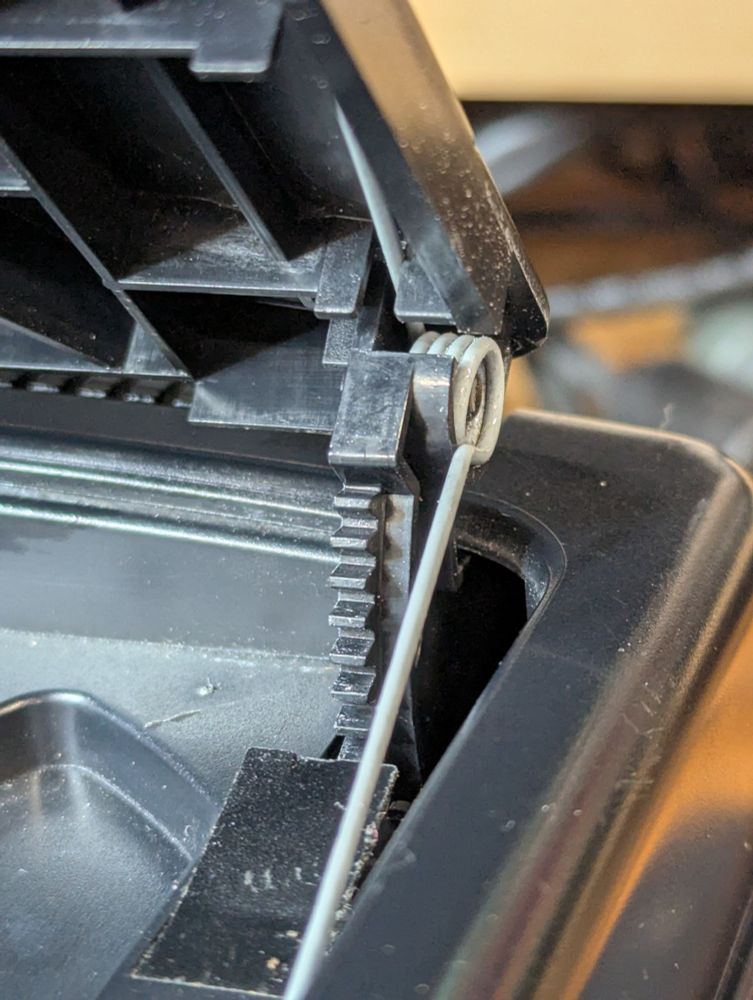

The spring that hold the CD lid open was really rusty. I put it in white vinegar to loosen the rust, sanded it, and painted it with metal protecting paint.

reply

tinktime.bsky.social•78 days ago

My older brother's friend had one back in the day, I thought it was the coolest thing I'd ever seen! Great job refurbing it, looks fantastic 👏

reply

topvint.co.uk•78 days ago

🙏 thanks. For me is the first time I see one in the flesh actually
